基本规格

端口串口类型: 4个RS-232/422/485
以太网口: 3个RJ45网口，2个多模光纤口
Console口: 1个8-pin RJ45口
LED灯: PWR1, PWR2, READY, MASTER, COUPLER,
LINK4, LINK5
物理特性外壳: 金属l
重量: 995 g
尺寸: 73.1 x 134 x 105 mm (2.88 x 5.27 x 4.13 in)
环境需求工作温度: 0 ~ 60°C (32 ~ 140°F)
工作湿度: 5 ~ 95% RH
存储温度: -40 ~ 85°C (-40 ~ 185°F)
电源需求输入电压: 12 ~ 48 VDC
电源功耗: 935mA @ 12 V, 470 mA @ 24 V
安规认证EMC: FCC Class A, CE Class A
Safety: UL-508
EMS:
IEC 61000-4-2, Level 4 (ESD)
IEC 61000-4-4, Level 4 (EFT)
IEC 61000-4-5 for serial port, Level 1 (Surge)
IEC 61000-4-5 for LAN port, Level 2 (Surge)
IEC 61000-4-5 for Power Line, Level 3 (Surge)
保修期保修期: 5年

串口服务器规格

串口界面串口数: 4
串口类型: RS-232/422/485
连接头: DB9 male
串口保护:
所有串口15 KV ESD保护
2 KV光电隔离保护
RS-485数据流向控制: ADDC (automatic data direction
control)
RS-485上拉/下拉电阻: 1 KΩ, 150 KΩ
RS-485: 55 Ω, 120 Ω
Console口: RS-232 console口 (8-pin RJ45)
串口通讯数据位: 5, 6, 7, 8
停止位: 1, 1.5, 2
校验位: None, Even, Odd, Space, Mark
流控: RTS/CTS and XON/XOFF
波特率: 50 bps ~ 921.6 Kbps
串口信号RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND
软件管理配置方式: Web Console, Telnet Console, Serial
Console, Windows Search Utility
Windows Real COM驱动: Windows 95, 98, ME, NT, 2000,
XP x86/x64, 2003 x86/x64, Vista x86/x64, 2008 x86/x64,
Embedded CE 5.0/6.0, XP Embedded
Fixed TTY驱动: SCO Unix, SCO OpenServer, UnixWare 7,
UnixWare 2.1, SVR 4.2, QNX 4.25, QNX 6, Solaris 10, FreeBSD,
AIX 5.x, HP-UX 11i
Linux Real TTY驱动: Linux kernel 2.4.x, 2.6.x
操作模式: Real COM, TCP Server, TCP Client, UDP, RFC2217
网管功能: SNMP MIB-II
IP路由: Static, RIP-I, RIP-II
稳定性报警工具: Built-in buzzer and RTC (real-time clock)
自动重起触发: Built-in WDT (watchdog timer)以太网界面标准:
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100Base FX
IEEE 802.3x for Flow Control
IEEE 802.1D for Spanning Tree Protocol
IEEE 802.1w for Rapid STP
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service
IEEE 802.1X for Authentication
IEEE 802.3ad for Port Trunk with LACP
网络协议: ICMP, IP, TCP, UDP, ARP, Telnet, DNS, HTTP, SMTP,
SNTP, IGMPv1/v2 device, GVRP, SNMPv1/v2c/v3, DHCP
Server/Client, DHCP Option 82, BootP, TFTP, SNTP, SMTP,
RARP, GMRP, LACP, RMON
MIB: MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE
MIB,Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9
流控: IEEE 802.3x fl ow control, back pressure flow control
interface
光纤界面类型: 多模
传输距离: 0 ~ 2 km, 1310 nm (62.5/125 μm, 500 MHz*km)
最小TX 输出: -20 dBm
最大TX 输出: -14 dBm
敏感度: -34 ~ -30 dBm
交换机特性优先序列: 4
最大VLAN可用数量: 64
VLAN ID 范围: VID 1 ~ 4094
IGMP组: 256
交换机界面RJ45 口: 自适应10/100BaseT(X) ；全双工/半双工；MDI/MDI-X
自动连接

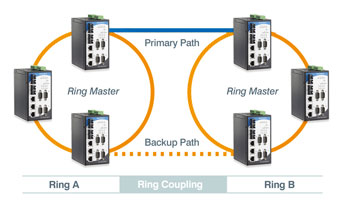

DIP开关: Turbo Ring, Master, Coupler, Reserve
报警功能: 2 relay outputs with current carrying capacity of 1A
@ 24 VD
